Task 2: Understand the LED

What is an LED?

An LED is a tiny light that you can find in many of our everyday gadgets like toys, remote controls, and even in traffic lights! It’s special because it doesn’t get hot like regular bulbs and uses very little electricity to shine brightly.

LED stands for Light Emitting Diode. ‘Light Emitting’ means it gives off light when it works, and ‘Diode’ means it’s a type of electrical part that lets electricity pass in only one direction. So, when you set it up in your projects, you have to make sure it’s facing the right way, or it won’t light up.

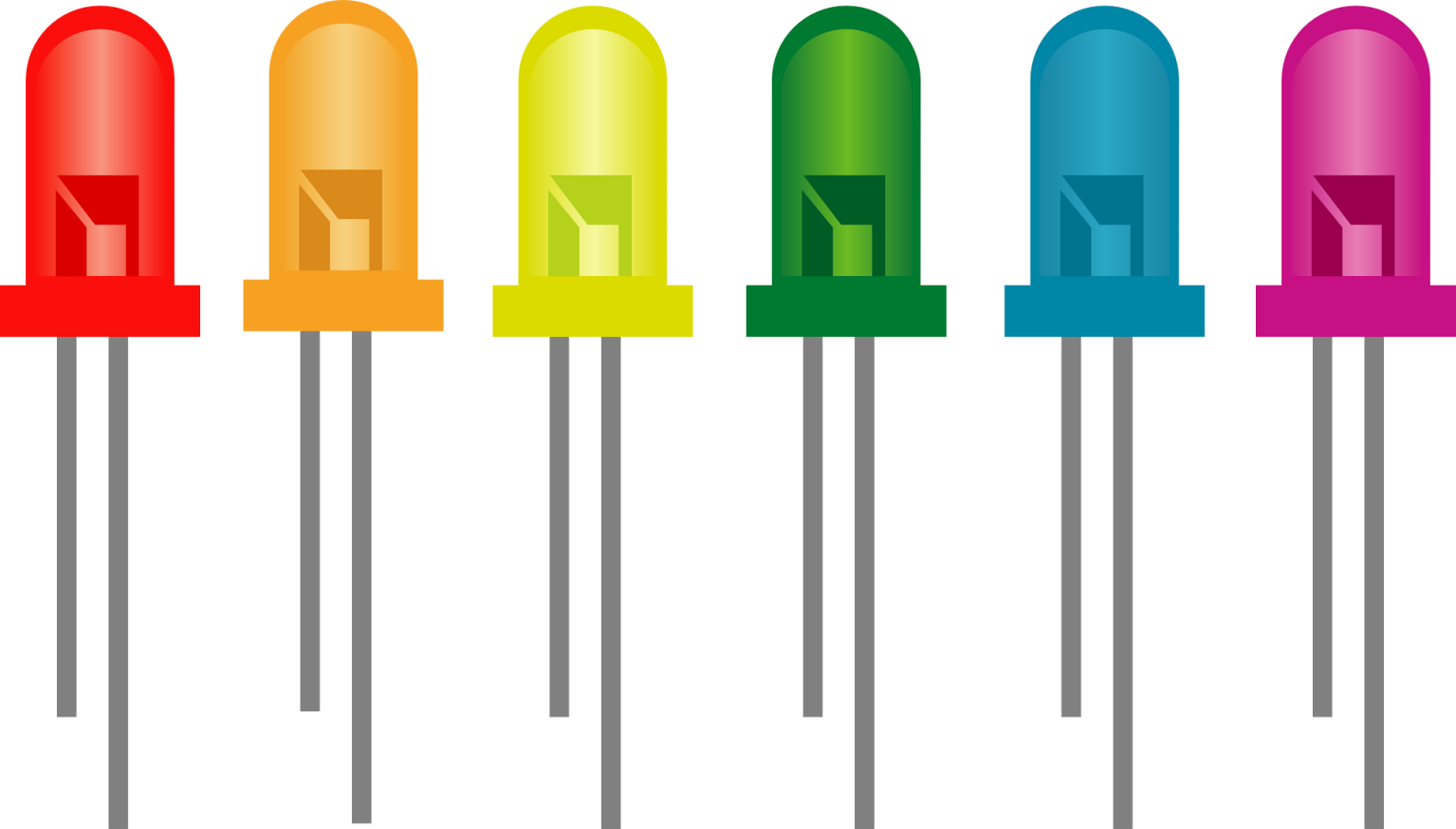

You can find LEDs in many colors like red, green, blue, and even colors that change! They are used to make things look bright and colorful.

How do I tell the positive leg from the negative leg?

1. Leg Length: Look at the two legs of the LED. The longer leg is typically the anode ( positive ), and the shorter leg is the cathode ( negative ).

2. Flat Edge: On the plastic casing of the LED, you might find a flat edge. This flat side usually indicates the cathode side.

3. Inside Look: If the LED is clear and you can see inside, look for the larger and smaller metal parts attached to the legs. The smaller metal part is connected to the anode, while the larger part is connected to the cathode.

Using these visual cues, you can easily determine which leg is positive and which is negative on an LED.

What Happens if Wired Incorrectly?

Wiring components incorrectly can lead to several issues:

LEDs: If you reverse the connections of the LED (putting the anode where the cathode should be and vice versa), the LED will not light up because it only allows current to pass in one direction.

Too Much Current: Without a resistor, too much current can flow through the LED, potentially burning it out. The resistor limits the current , protecting the LED.

Short Circuits: Incorrect wiring can also lead to short circuits , where electricity takes a shorter, unintended path between power and ground. This can bypass other components in the circuit , leading to overheating, damage, or even electrical fires. In the context of an LED, if the leads are directly connected from power to ground without a resistor, it can create a short circuit that allows a large amount of current to flow, quickly overheating and destroying the LED.
