Task 3: What are resistors and why do we need them?

What Are Resistors?

Imagine you’re using a garden hose to water plants. If you open the tap all the way, the water rushes out too fast and might harm the plants. To protect them, you might want to slow down the water flow. In electronics, a resistor acts like your thumb on the hose end or a valve that controls how much water (or electricity) flows through.

Resistors are usually small pieces, often with colorful stripes on them. These stripes tell you how much resistance they provide. Resistance is measured in ohms (symbol: Ω).

Why Do We Need Resistors?

1. Control Current: Just like controlling water in a hose, resistors control how much current flows in a circuit . This helps to keep other components like LEDs and transistors safe from getting too much electricity, which can damage them.

2. Divide Voltage: Resistors can be used to reduce the voltage to a level that is suitable for other components within the circuit . This means they can take a high voltage from the source and lower it to a level that is safe for components to handle.

3. Heat Generation: Some circuits use resistors to generate heat. For example, in your toaster, resistors are used to turn electrical energy into heat, which toasts your bread.

4. Timing Circuits: In combination with capacitors, resistors can help control the timing in circuits. For example, in a blinking LED circuit, a resistor and a capacitor can work together to control how fast the LED blinks.

Because of these reasons, resistors are incredibly important in making sure electronic devices operate safely, efficiently, and as intended. They are like the unsung heroes of the electronic world, quietly making sure everything works just right!

Ways to Measure a Resistor

There are three simple ways to measure the resistance of a resistor. Understanding each method will help you choose the right resistor for your circuit and confirm that it works properly.

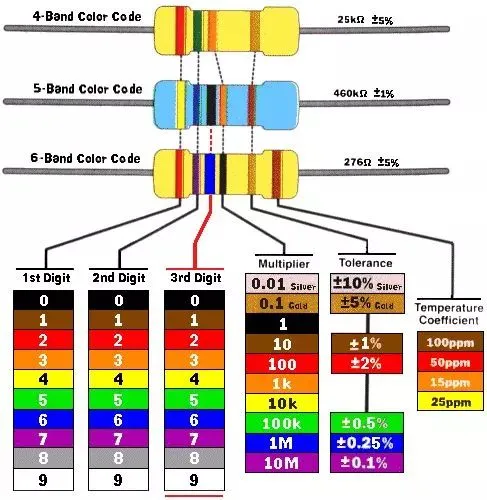

1. Use the Color Bands: Most resistors have colored stripes that tell you their resistance value. The first two bands represent numbers, the third is a multiplier, and the fourth (if present) shows tolerance. By using a resistor color code chart, you can easily decode these bands to find the resistor’s value.

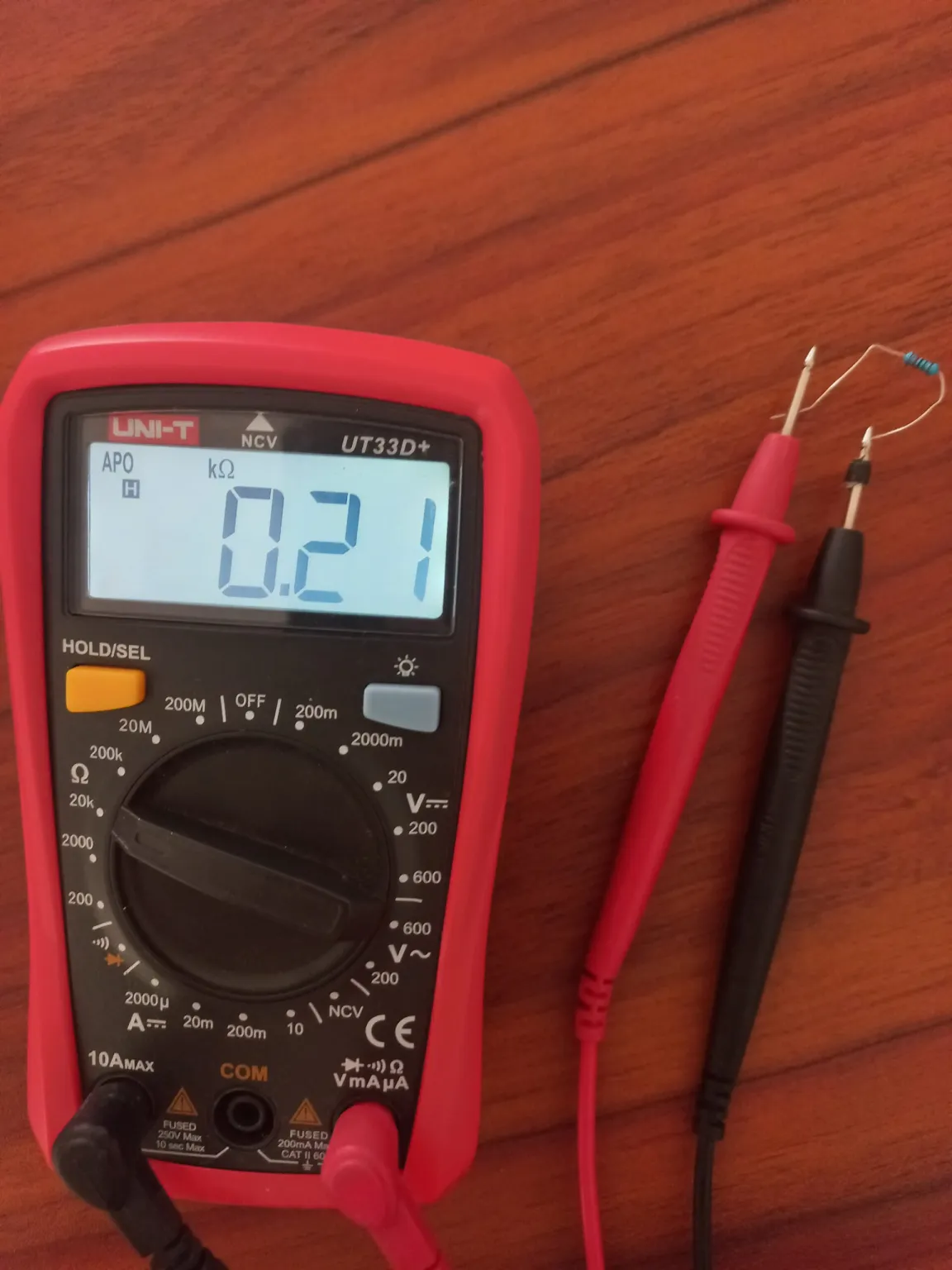

2. Use a Multimeter: A digital multimeter is a quick and reliable way to measure resistance. Set the multimeter to the resistance (Ω) setting, then touch each probe to the resistor legs. The display will show the actual resistance. This is useful for confirming values or checking old or unlabeled resistors.

3. Use a Multi-Function Tester (e.g., TC1): A multi-function tester like the TC1 can automatically detect and display the resistance when a resistor is inserted into the test slot. These testers are helpful for quickly checking components, especially when color bands are faded or hard to read.
