Exploring the 74HC595 Shift Register | Task 2

In this task, we'll explore the 74HC595 shift register and the shiftOut function.

The 74HC595 is like a magic box filled with tiny switches. It allows your Arduino to control many LEDs or other components using just a few wires.

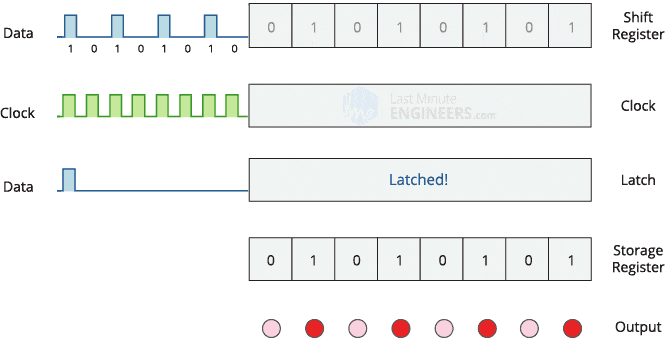

This component works using something called "Serial-In, Parallel-Out." That means it receives data one bit at a time (serial) but can switch on multiple outputs all at once (parallel).

How to Connect It:

• Talk wire – Connects to DS (Serial Data Input). Sends one piece of data at a time.
• Start wire – Connects to RCLK (Latch Enable). Triggers the output change.
• Action wire – Connects to SRCLK (Serial Clock). Sends the timing signal to shift data in.

The output pins (Q0 to Q7) connect to LEDs or other devices. These outputs change based on the binary data you send in.

This is useful because it saves Arduino pins. With just 3 pins, you can control 8 outputs—and even more if you chain multiple shift registers together!

Summary:

The shift register is a smart solution to expand how many components your Arduino can control. It’s like giving your Arduino more hands without needing more wires.
